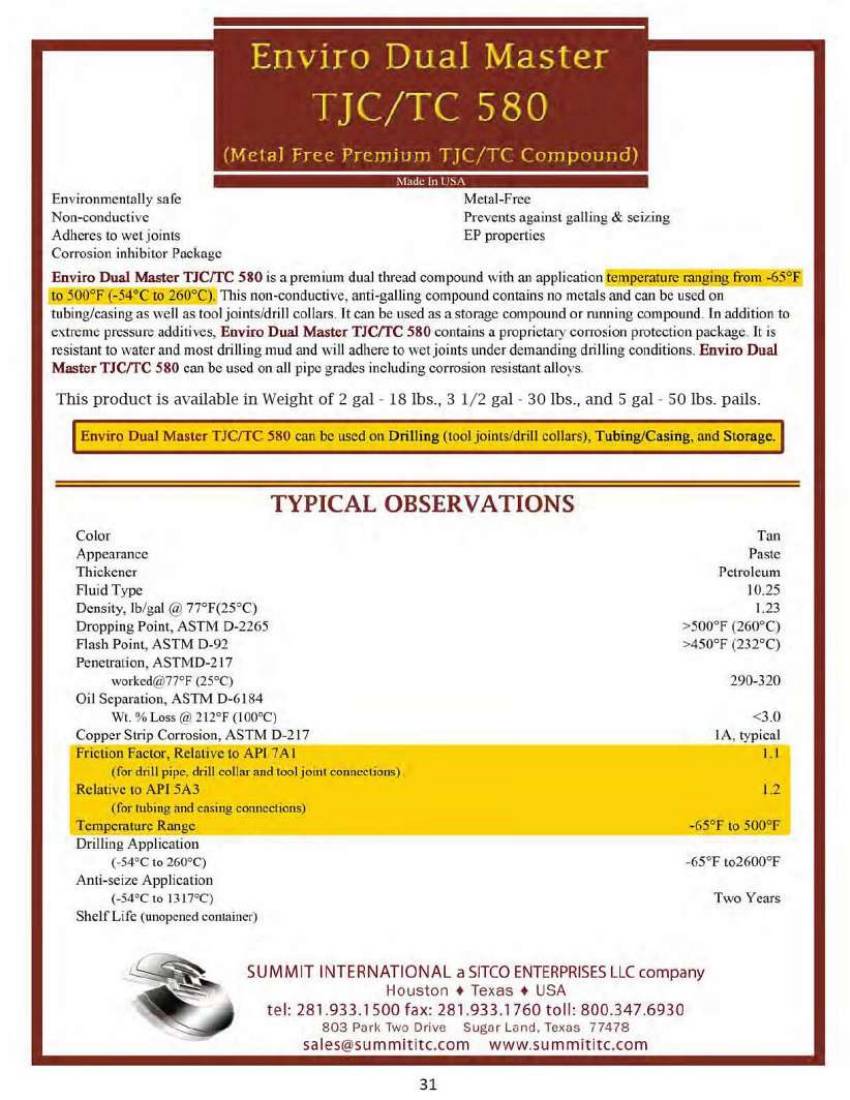

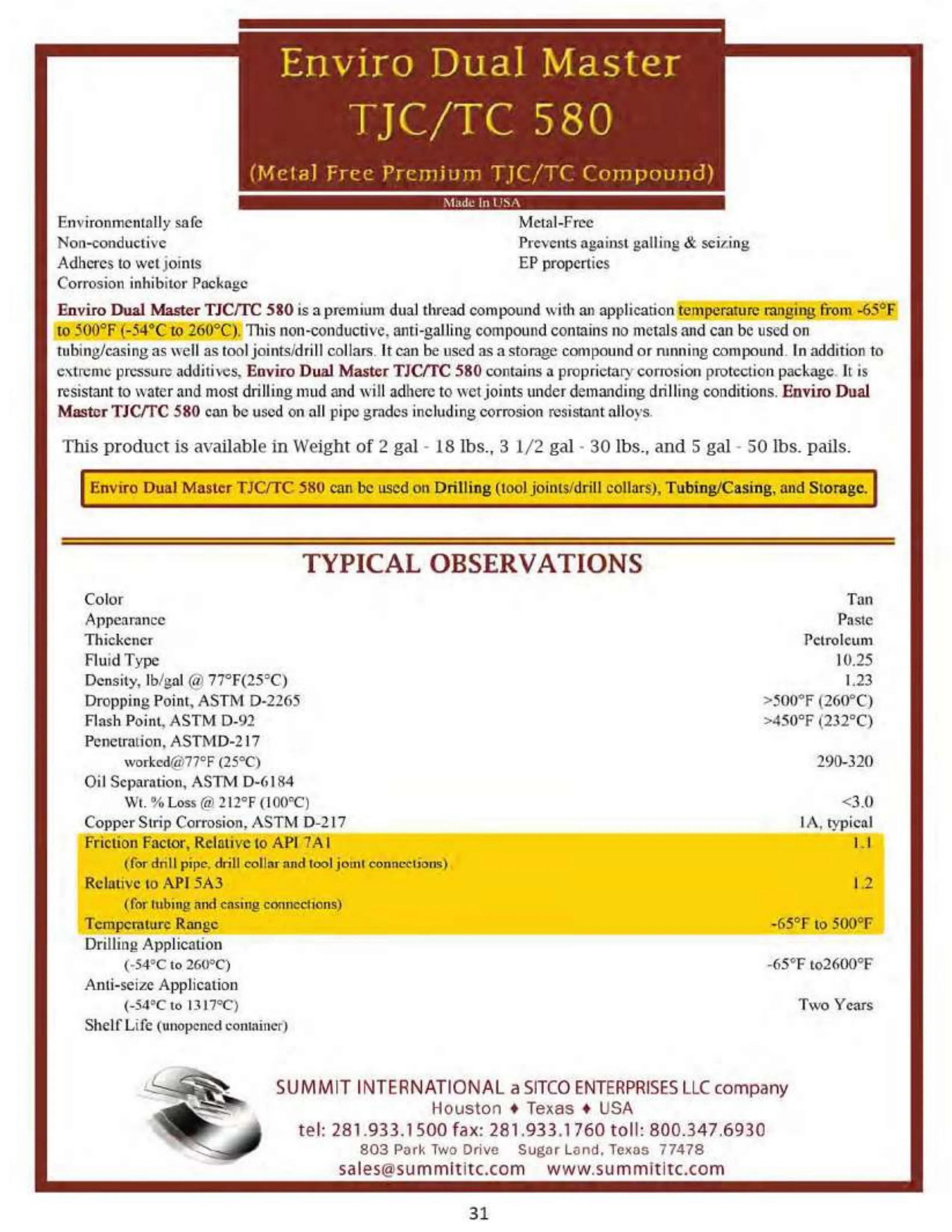

Summit Oilfield Lubricants & Sealants
Enviro Dual Master
TJC/TC 580 — Metal Free Premium TJC/TC Compound
Product Information
Enviro Dual Master TJC/TC 580 is a premium dual thread compound with an application temperature range from -65°F to 500°F (-54°C to 260°C). This non-conductive, anti-galling compound contains no metals and can be used on tubing/casing as well as tool joints/drill collars. It can be used as a storage compound or running compound. In addition to extreme pressure additives, Enviro Dual Master TJC/TC 580 contains a proprietary corrosion protection package. It is resistant to water and most drilling mud and will adhere to wet joints under demanding drilling conditions. Enviro Dual Master TJC/TC 580 can be used on all pipe grades including corrosion resistant alloys.
Enviro Dual Master TJC/TC 580 can be used on drilling (tool joints/drill collars), tubing/casing, and storage. This product is available in weight of 2 gal - 18 lbs., 3 1/2 gal - 30 lbs., and 5 gal - 50 lbs. pails.
- Environmentally safe and metal-free
- Non-conductive
- Prevents against galling & seizing
- Adheres to wet joints
- EP properties with corrosion inhibitor package
Typical Observations
| Color | Tan |
| Appearance | Paste |
| Thickener | Petroleum |
| Density, lb/gal @ 77°F (25°C) | 10.25 |
| Specific Gravity @ 77°F (25°C) | 1.23 |
| Dropping Point, ASTM D-2265 | >500°F (260°C) |
| Flash Point, ASTM D-92 | >450°F (232°C) |
| Penetration, ASTM D-217 worked @ 77°F (25°C) | 290-320 |
| Oil Separation, ASTM D-6184 Wt. % Loss @ 212°F (100°C) | <3.0 |
| Copper Strip Corrosion, ASTM D-217 | 1A, typical |
| Friction Factor, Relative to API (drill pipe, drill collar & tool joint connections) | 1.0 |
| Friction Factor, Relative to API 5A3 (tubing and casing connections) | 1.2 |
| Temperature Range, Drilling Application | -65°F to 500°F (-54°C to 260°C) |
| Shelf Life (unopened container) | Two years |
