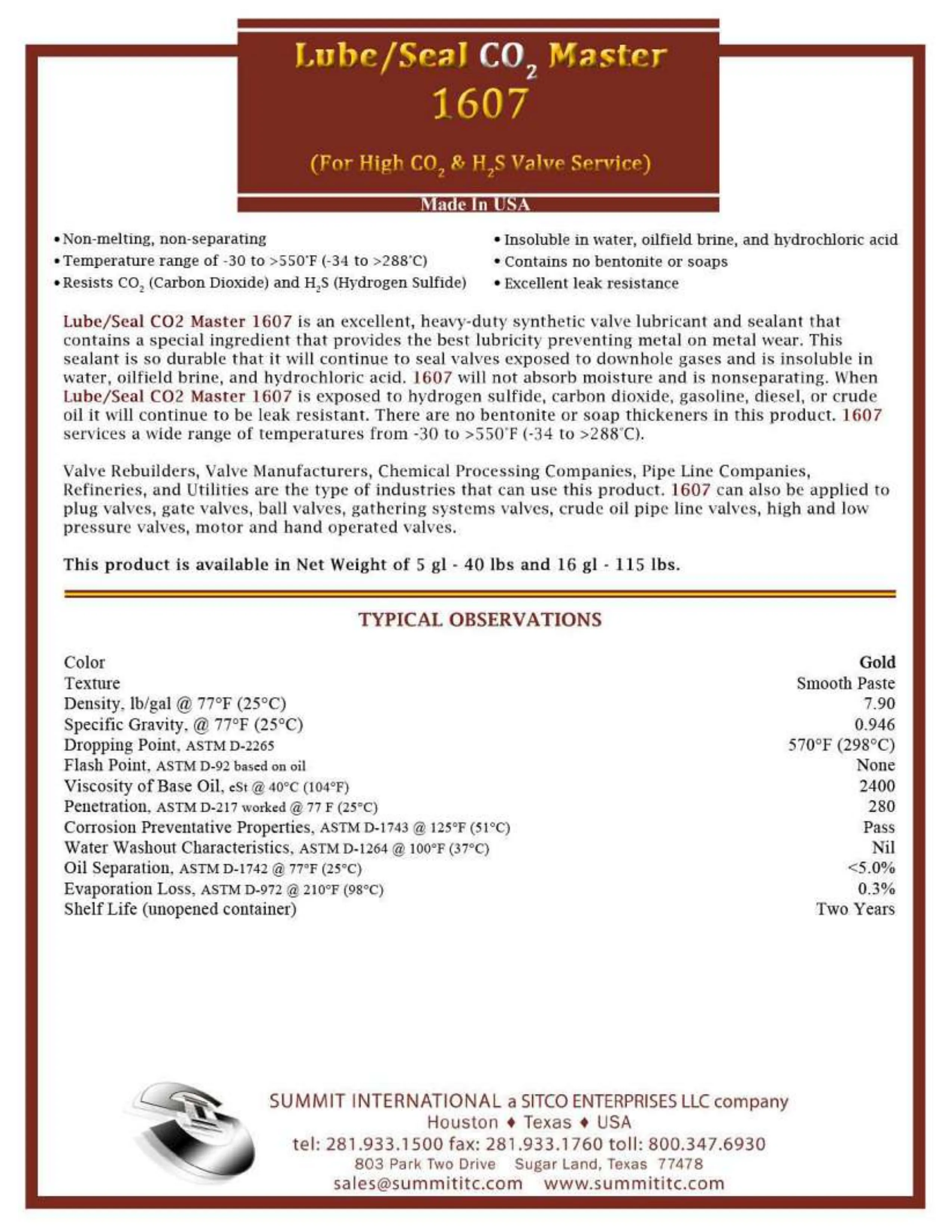

Summit Oilfield Lubricants & Sealants
Lube/Seal CO₂ Master
1607 — For High CO₂ & H₂S Valve Service
Product Information
Lube/Seal CO₂ Master 1607 is an excellent, heavy-duty synthetic valve lubricant and sealant that contains a special ingredient that provides the best lubricity preventing metal on metal wear. This sealant is so durable that it will continue to seal valves exposed to downhole gases and is insoluble in water, oilfield brine, and hydrochloric acid. 1607 will not absorb moisture and is non-separating. When Lube/Seal CO₂ Master 1607 is exposed to hydrogen sulfide, carbon dioxide, gasoline, diesel, or crude oil it will continue to be leak resistant. There are no bentonite or soap thickeners in this product. 1607 services a wide range of temperatures from -30 to >550°F (-34 to >288°C).
Valve rebuilders, valve manufacturers, chemical processing companies, pipe line companies, refineries, and utilities are the type of industries that can use this product. 1607 can also be applied to plug valves, gate valves, ball valves, gathering systems valves, crude oil pipe line valves, high and low pressure valves, and motor and hand operated valves. This product is available in net weight of 5 gal - 40 lbs. and 16 gal - 115 lbs.
- Non-melting, non-separating
- Temperature range of -30 to >550°F (-34 to >288°C)
- Resists CO₂ (carbon dioxide) and H₂S (hydrogen sulfide)
- Insoluble in water, oilfield brine, and hydrochloric acid
- Contains no bentonite or soaps
- Excellent leak resistance
Typical Observations
| Color | Gold |
| Texture | Smooth Paste |
| Density, lb/gal @ 77°F (25°C) | 7.90 |
| Specific Gravity @ 77°F (25°C) | 0.946 |
| Dropping Point, ASTM D-2265 | 570°F (298°C) |
| Flash Point, ASTM D-92 based on oil | None |
| Viscosity of Base Oil, cSt @ 40°C (104°F) | 2400 |
| Penetration, ASTM D-217 worked @ 77°F (25°C) | 280 |
| Corrosion Preventative Properties, ASTM D-1743 @ 125°F (51°C) | Pass |
| Water Washout Characteristics, ASTM D-1264 @ 100°F (37°C) | Nil |
| Oil Separation, ASTM D-1742 @ 77°F (25°C) | <5.0% |
| Evaporation Loss, ASTM D-972 @ 210°F (98°C) | 0.3% |
| Shelf Life (unopened container) | Two years |
