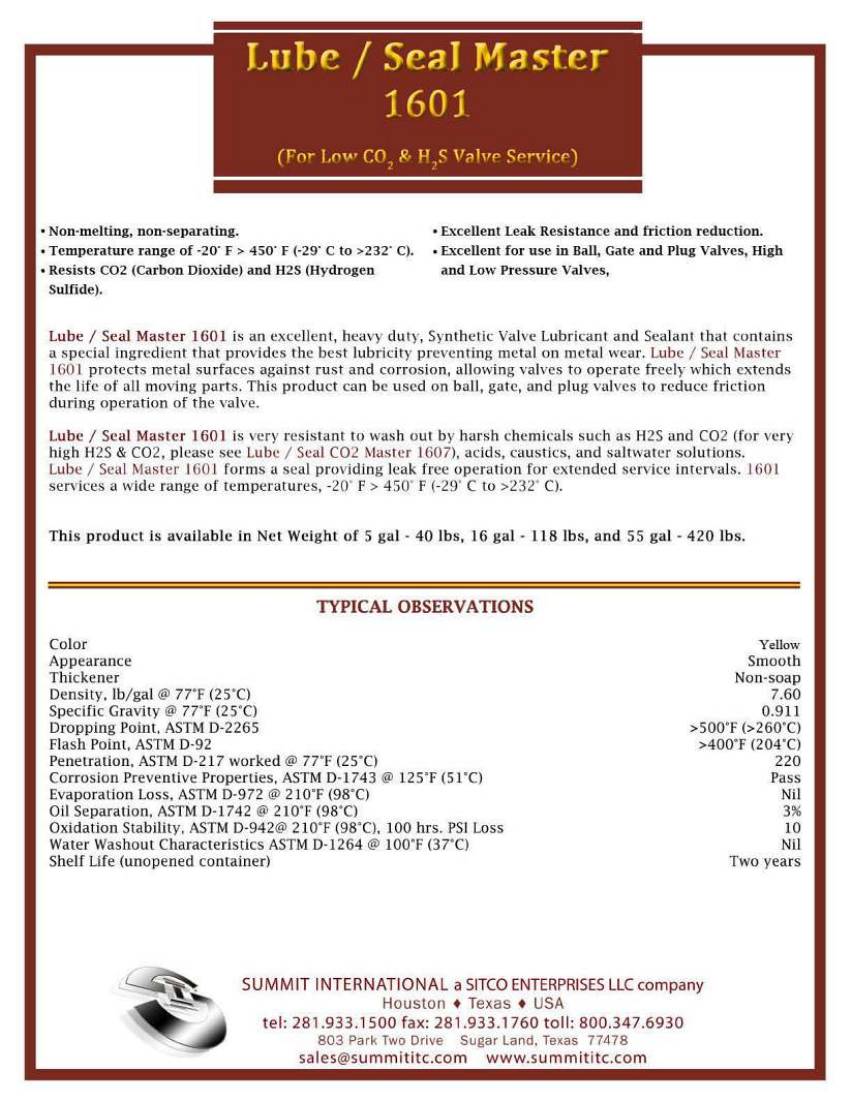

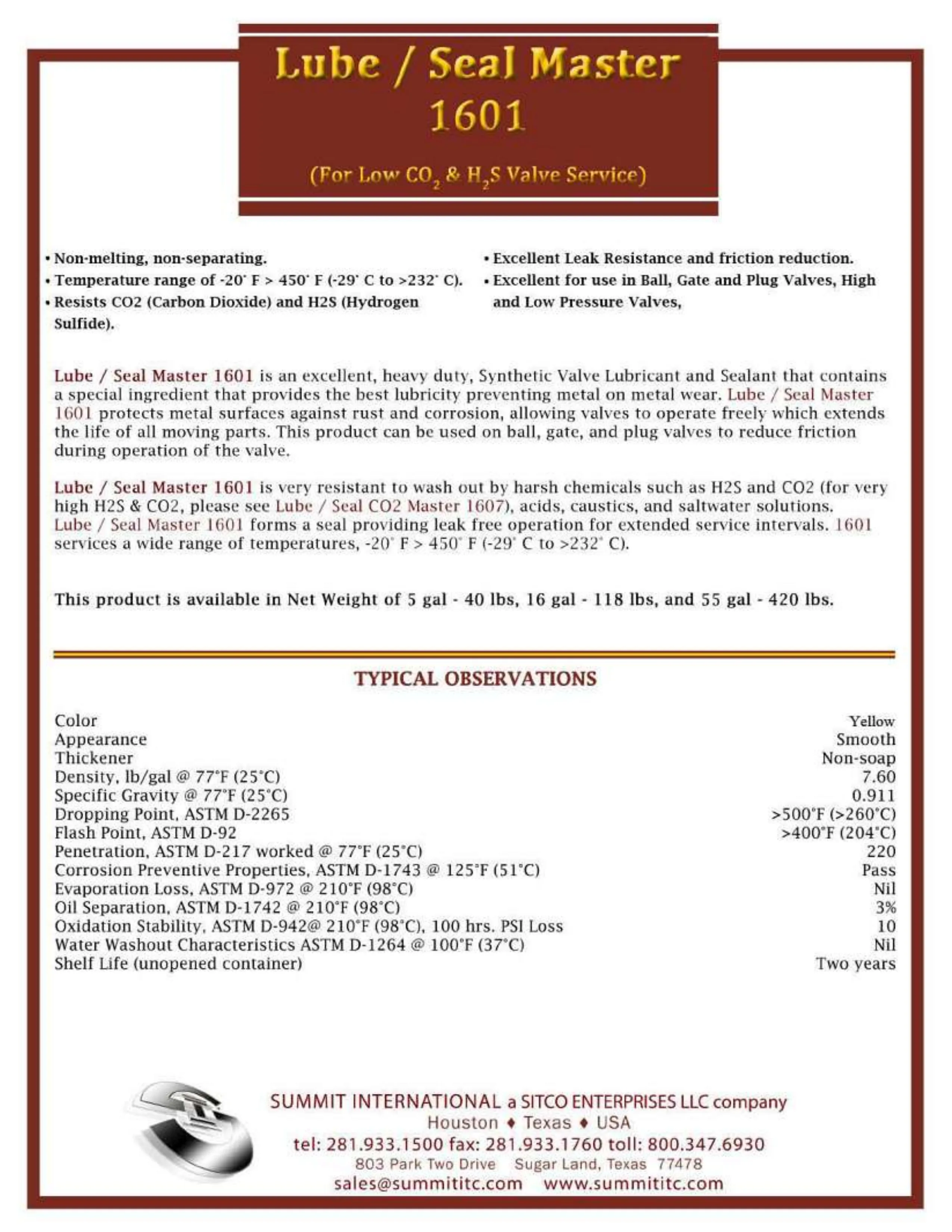

Summit Oilfield Lubricants & Sealants
Lube/Seal Master
1601 — For Low CO₂ & H₂S Valve Service
Product Information
Lube/Seal Master 1601 is an excellent, heavy duty, synthetic valve lubricant and sealant that contains a special ingredient that provides the best lubricity preventing metal on metal wear. Lube/Seal Master 1601 protects metal surfaces against rust and corrosion, allowing valves to operate freely which extends the life of all moving parts. This product can be used on ball, gate, and plug valves to reduce friction during operation of the valve.
Lube/Seal Master 1601 is very resistant to wash out by harsh chemicals such as H₂S and CO₂ (for very high H₂S & CO₂, please see Lube/Seal CO₂ Master 1607), acids, caustics, and saltwater solutions. Lube/Seal Master 1601 forms a seal providing leak free operation for extended service intervals. 1601 services a wide range of temperatures, -20°F to >450°F (-29°C to >232°C). This product is available in net weight of 5 gal - 40 lbs., 16 gal - 118 lbs., and 55 gal - 420 lbs.
- Non-melting, non-separating
- Temperature range of -20°F to >450°F (-29°C to >232°C)
- Resists CO₂ (carbon dioxide) and H₂S (hydrogen sulfide)
- Excellent leak resistance and friction reduction
- Excellent for use in ball, gate and plug valves, high and low pressure valves
Typical Observations
| Color | Yellow |
| Appearance | Smooth |
| Thickener | Non-soap |
| Density, lb/gal @ 77°F (25°C) | 7.60 |
| Specific Gravity @ 77°F (25°C) | 0.911 |
| Dropping Point, ASTM D-2265 | >500°F (>260°C) |
| Flash Point, ASTM D-92 | >400°F (204°C) |
| Penetration, ASTM D-217 worked @ 77°F (25°C) | 220 |
| Corrosion Preventive Properties, ASTM D-1743 @ 125°F (51°C) | Pass |
| Evaporation Loss, ASTM D-972 @ 210°F (98°C) | Nil |
| Oil Separation, ASTM D-1742 @ 210°F (98°C) | 3% |
| Oxidation Stability, ASTM D-942 @ 210°F (98°C), 100 hrs. PSI Loss | 10 |
| Water Washout Characteristics, ASTM D-1264 @ 100°F (37°C) | Nil |
| Shelf Life (unopened container) | Two years |
