Summit Oilfield Lubricants & Sealants

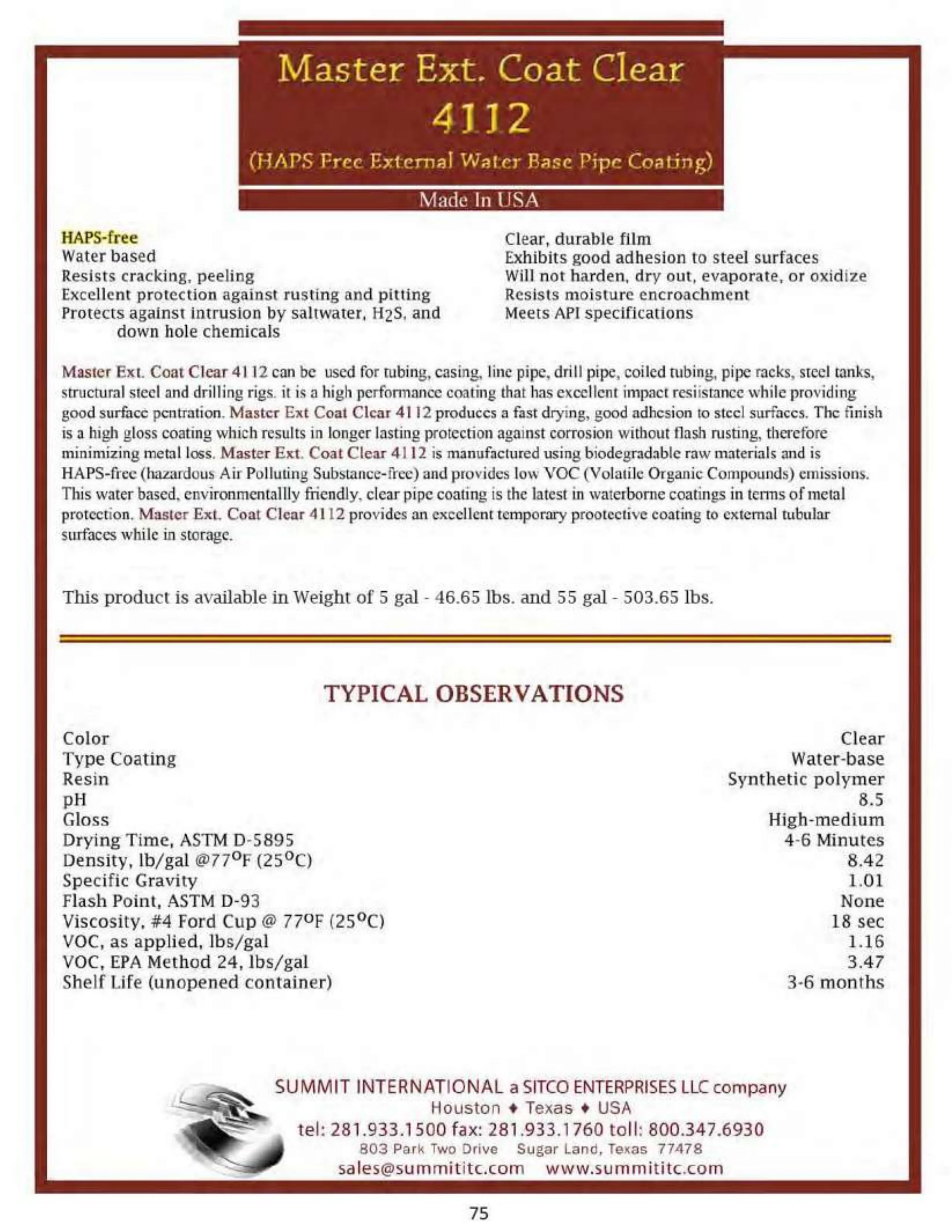

Master Ext. Coat Clear
4112 — HAPS Free External Water Base Pipe Coating
Product Information
Master Ext. Coat Clear 4112 can be used for tubing, casing, line pipe, drill pipe, coiled tubing, pipe racks, steel tanks, structural steel and drilling rigs. It is a high performance coating that has excellent impact resistance while providing good surface penetration. Master Ext. Coat Clear 4112 produces a fast drying, good adhesion to steel surfaces. The finish is a high gloss coating which results in longer lasting protection against corrosion without flash rusting, therefore minimizing metal loss. Master Ext. Coat Clear 4112 is manufactured using biodegradable raw materials and is HAPS-free (Hazardous Air Polluting Substance-free) and provides low VOC (Volatile Organic Compounds) emissions.
This water based, environmentally friendly, clear pipe coating is the latest in waterborne coatings in terms of metal protection. Master Ext. Coat Clear 4112 provides an excellent temporary protective coating to external tubular surfaces while in storage. This product is available in weight of 5 gal - 46.65 lbs. and 55 gal - 503.65 lbs.
- HAPS-free clear, durable film
- Water based with good adhesion to steel surfaces
- Resists cracking and peeling
- Will not harden, dry out, evaporate, or oxidize
- Excellent protection against rusting and pitting
- Resists moisture encroachment
- Protects against intrusion by saltwater, H₂S, and down hole chemicals
- Meets API specifications
Typical Observations
| Color | Clear |
| Type Coating | Water-base |
| Resin | Synthetic polymer |
| pH | 8.5 |
| Gloss | High-medium |
| Drying Time, ASTM D-5895 | 4-6 minutes |
| Density, lb/gal @ 77°F (25°C) | 8.42 |
| Specific Gravity | 1.01 |
| Flash Point, ASTM D-93 | None |
| Viscosity, #4 Ford Cup @ 77°F (25°C) | 18 sec |
| VOC, as applied, lbs/gal | 1.16 |
| VOC, EPA Method 24, lbs/gal | 3.47 |
| Shelf Life (unopened container) | 3-6 months |
