Master Lock
053 — Thread Locking Compound
View Full Spec Sheet
Product Information
Master Lock 053 is unaffected by vibration, pounding or expansion due to temperature changes, and is easily mixed under varying temperatures due to its workable consistency that lasts longer than an hour. 053 is a two part epoxy compound used to replace the welding of casing joints and threaded connections. Master Lock 053 withstands high break-out torque and provides a leak proof seal.
This product is available in weight of 1/2 lb case (12 kits) and 1 lb case (6 kits).
- Friction factor of 1.51
- Mixes easily with workable consistency in excess of one hour
- Water resistant and oxidation resistant
- Contains rust and corrosion inhibitors
- Withstands high breakout torque
- Provides a leakproof seal
- Self lubricating with excellent adhesion
- Unaffected by vibration and pounding
Typical Observations
| Chemical Family | Epoxy Polymer Resin |
| Color | Gray |
| Specific Gravity @ 25°C | 1.797 |
| ASTM Penetration @ 77°F (25°C) | 355-365 |
| NLGI Grade | 0 |
| Type Curing | Thermo Curing |
| Density, lb/gal | 15.00 |
| Friction Factor | 1.51 |
| Shelf Life | Two years |
| Coverage Chart (For 1 Pound Kit) — Pipe Size | No. of Joints |
|---|---|
| 4 1/2" - 5 1/2" | 16 Joints |
| 6 5/8" - 7" | 12 Joints |
| 7 5/8" - 9 7/8" | 8 Joints |
| 10 3/4" - 13 3/8" | 4 Joints |
| 16" - 20" | 2 Joints |

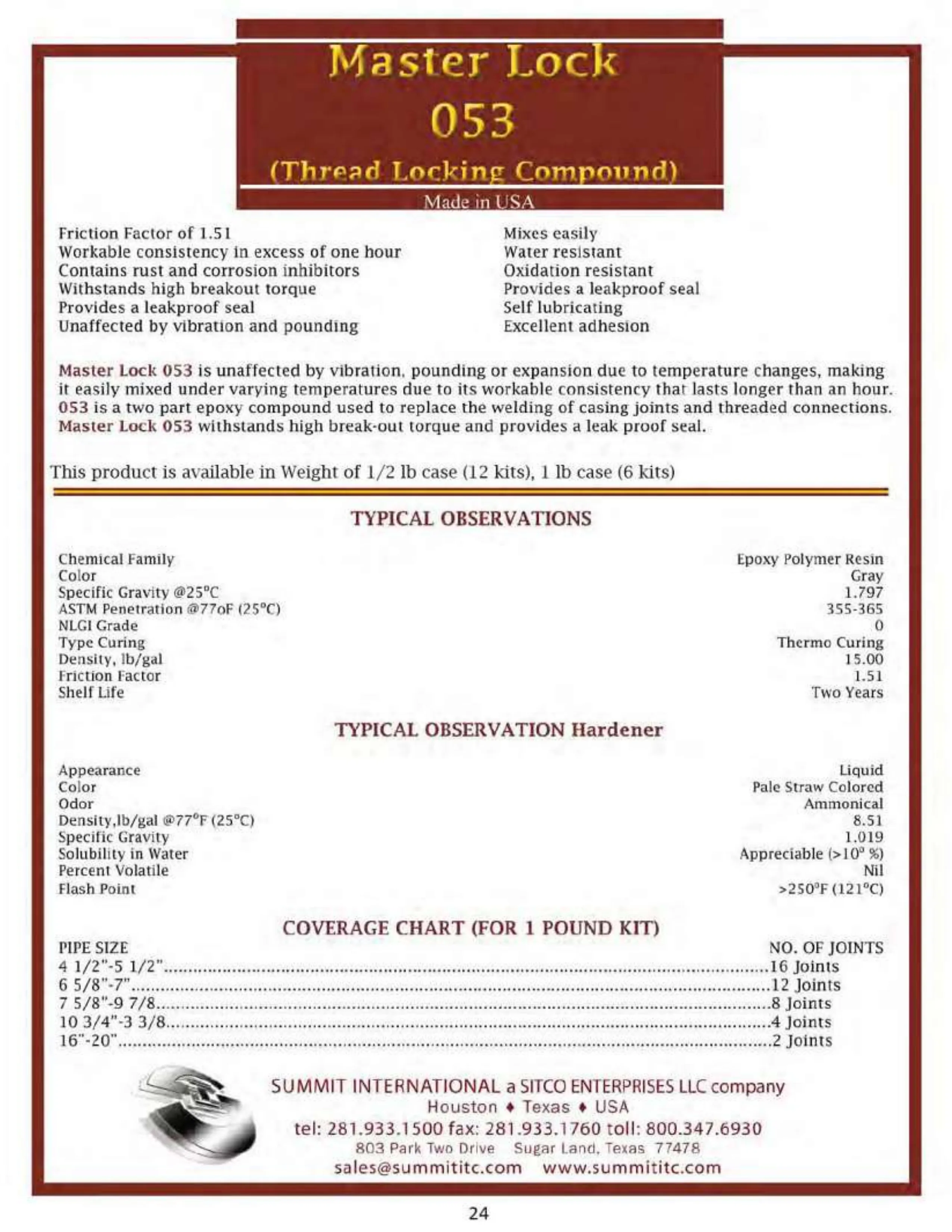

Need the original sheet with typical observations? View the catalog spec sheet for this product.
