Summit Oilfield Lubricants & Sealants

Seal Master

1603High Viscosity Emergency Valve Sealant

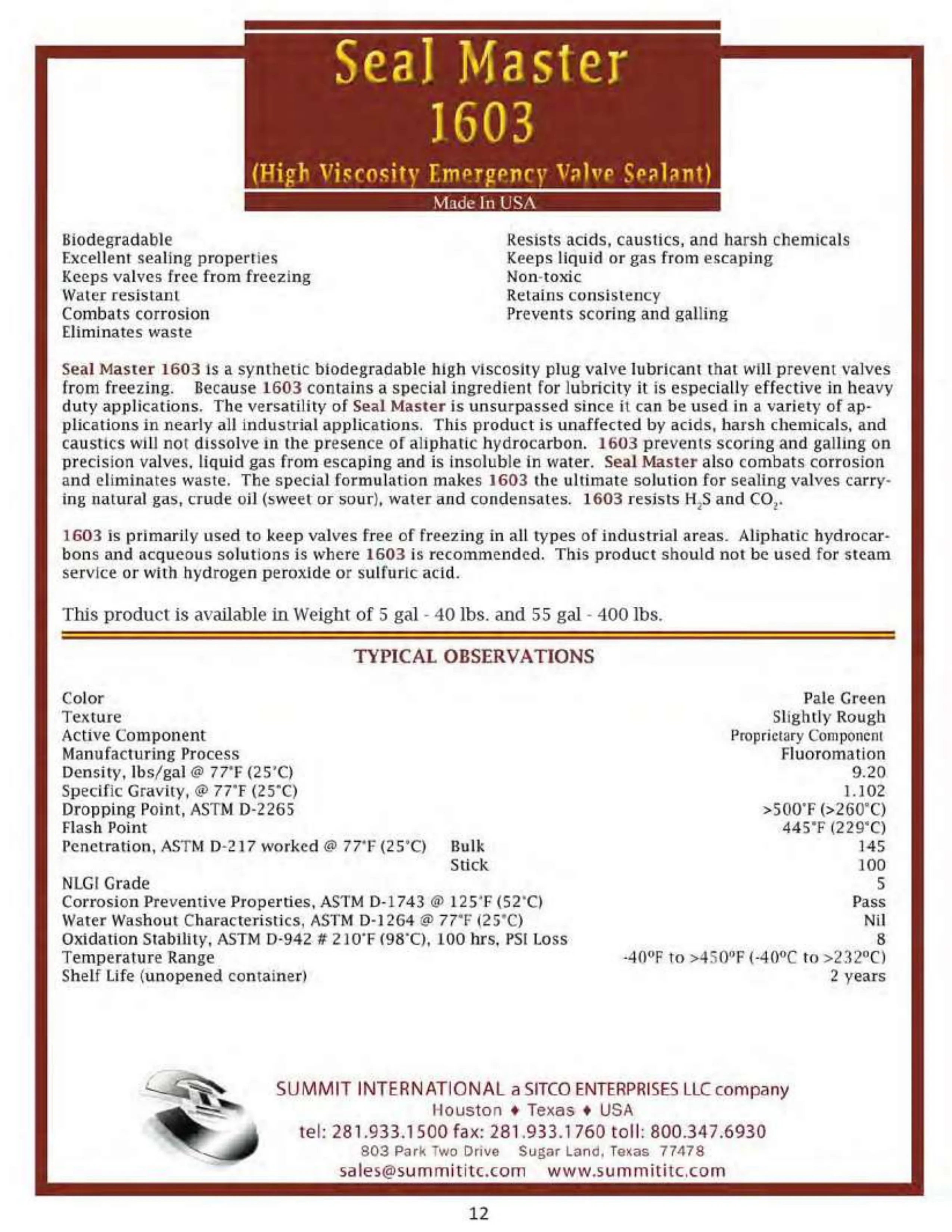

Seal Master 1603 catalog spec sheet
View Full Spec Sheet

Product Information

Seal Master 1603 is a synthetic biodegradable high viscosity plug valve lubricant that will prevent valves from freezing. Because 1603 contains a special ingredient for lubricity it is especially effective in heavy duty applications. The versatility of Seal Master is unsurpassed since it can be used in a variety of applications in nearly all industrial applications. This product is unaffected by acids, harsh chemicals, and caustics and will not dissolve in the presence of aliphatic hydrocarbon. 1603 prevents scoring and galling on precision valves, keeps liquid or gas from escaping and is insoluble in water. Seal Master also combats corrosion and eliminates waste. The special formulation makes 1603 the ultimate solution for sealing valves carrying natural gas, crude oil (sweet or sour), water and condensates. 1603 resists H₂S and CO₂.

1603 is primarily used to keep valves free of freezing in all types of industrial areas. Aliphatic hydrocarbons and aqueous solutions is where 1603 is recommended. This product should not be used for steam service or with hydrogen peroxide or sulfuric acid. This product is available in weight of 5 gal - 40 lbs. and 55 gal - 400 lbs.

  • Biodegradable and non-toxic
  • Excellent sealing properties — keeps liquid or gas from escaping
  • Keeps valves free from freezing
  • Resists acids, caustics, and harsh chemicals
  • Water resistant and retains consistency
  • Combats corrosion and prevents scoring and galling
  • Eliminates waste

Typical Observations

ColorPale Green
TextureSlightly Rough
Active ComponentProprietary Component
Manufacturing ProcessFluoromation
Density, lbs/gal @ 77°F (25°C)9.20
Specific Gravity @ 77°F (25°C)1.102
Dropping Point, ASTM D-2265>500°F (>260°C)
Flash Point445°F (229°C)
Penetration, ASTM D-217 worked @ 77°F (25°C)Bulk 145 / Stick 100
NLGI Grade5
Corrosion Preventive Properties, ASTM D-1743 @ 125°F (52°C)Pass
Water Washout Characteristics, ASTM D-1264 @ 77°F (25°C)Nil
Oxidation Stability, ASTM D-942 @ 210°F (98°C), 100 hrs. PSI Loss8
Temperature Range-40°F to >450°F (-40°C to >232°C)
Shelf Life (unopened container)2 years
Need the original sheet with typical observations? View the catalog spec sheet for this product.
