Summit Specialty Oil Tools
Fishing Bumper Sub
SFBS 11316-375 — Bi-Directional Bumper Sub
Product Information
Summit's Fishing Bumper subs are suited for all fishing applications including bump downs, jar ups, or to help disengage fish; post retrieval.
- Straightforward 5 piece design allows for ease of use and servicing
- Hexagonal shaped mandrel slides simply into similarly shaped mandrel body
- Design provides continuous torque capability
- Standard 20" stroke is optimum for most fishing purposes; however longer strokes can be accomplished upon request by simply converting the mandrel and main body
- Can be manufactured to any customer specification i.e. O.D, I.D., connection, etc.
Specifications
| Size O.D. | Size I.D. | Standard Tool Joint Connection |
|---|---|---|
| 1-13/16" | 3/8" | 1-13/16" WFJ |
| 2-1/4" | 1/2" | 1-1/4" REG |
| 3-1/8" | 1-17/32" | 2-3/8" EUE |
| 3-5/32" | 1" | 2-3/8" REG |
| 3-3/8" | 1" | 2-3/8" IF |
| 3-3/4" | 1-1/2" | 2-3/8" IF |
| 3-3/4" | 1-7/8" | 2-3/8" EUE |

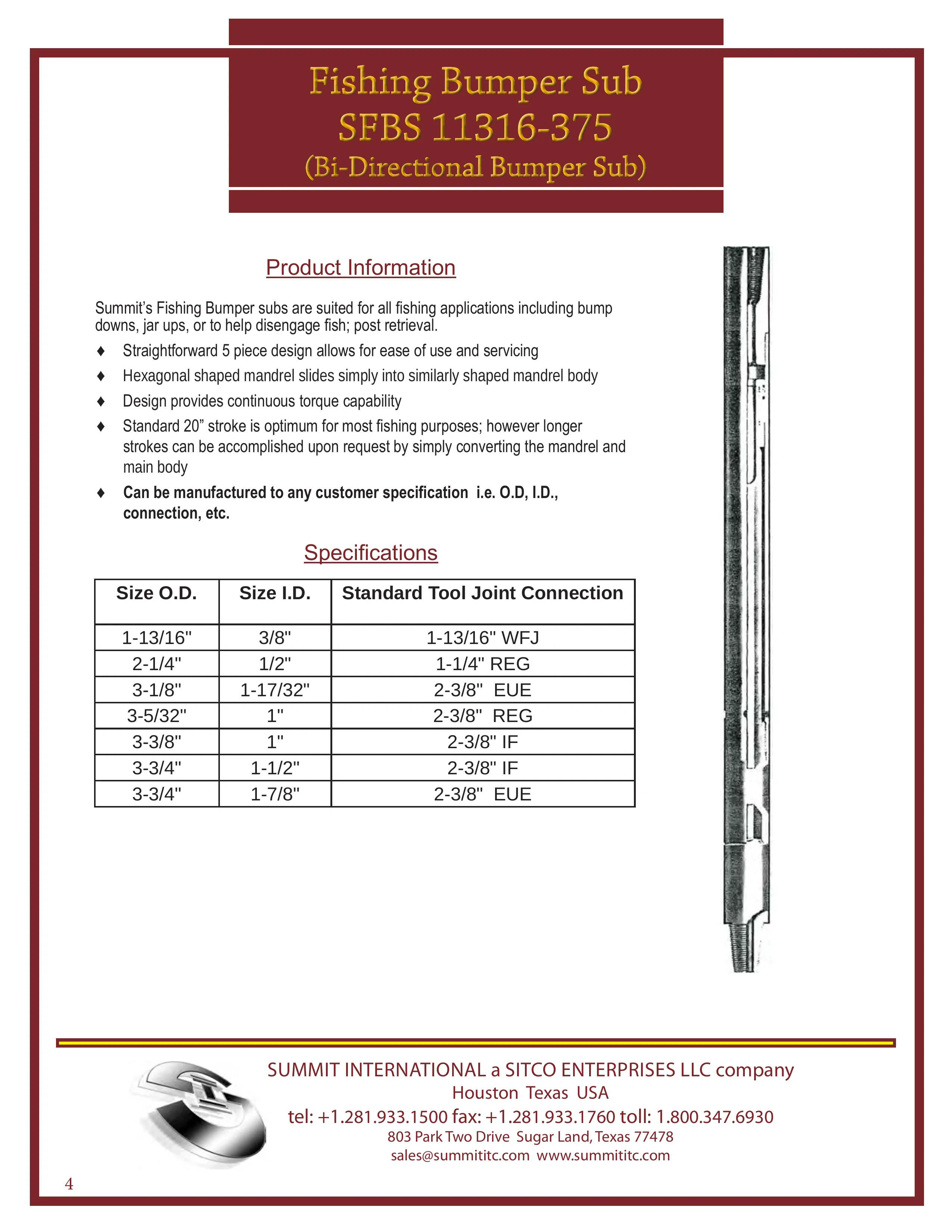

Need the original sheet? View the catalog spec sheet for this product.
