Fishing Magnet
SFM 02-20 — Junk Magnet for Fishing Operations
Product Information
Summit's Fishing Magnets are the most successful specific purpose fishing tools available to retrieve items that are unable to be drilled/milled and have a magnetic attraction.
- Used to retrieve multiple sized and shaped magnetic objects from the bottom of the wellbore
- Items that have been successfully fished include, but are not limited to bit cones, bearings, hand tools, slips, and basically anything else that is dropped or left in the bottom of the wellbore
- Specific use for when other conventional (inside or outside) catch tools are unable to catch on oddly shaped items in the wellbore
- Summit's magnets are capable of exerting pulls ranging from 5 lbs up 3,000 lbs
- No loss of circulation through the tools during the entire service
- Can be manufactured to any customer specification i.e. O.D, I.D., high H2S environments, etc.
Specifications
| Common Hole Size | Top Sub O.D. | Approximate Pull (LBS) |
|---|---|---|
| 3" - 3-3/4" | 2-1/2" | 65 |
| 4-1/2" - 5" | 4" | 115 |
| 6-1/8" - 6-1/2" | 5-1/2" | 250 |
| 7-5/8" - 8-1/2" | 7" | 330 |
| 8-5/8" - 9-3/4" | 8" | 560 |
| 9-7/8" - 11-5/8" | 9" | 680 |
| 11-3/4" - 13" | 10-1/2" | 800 |
| 12-1/4" - 14" | 11-1/2" | 800 |
| 17" | 16" | 1100 |
| 20" | 19" | 1470 |

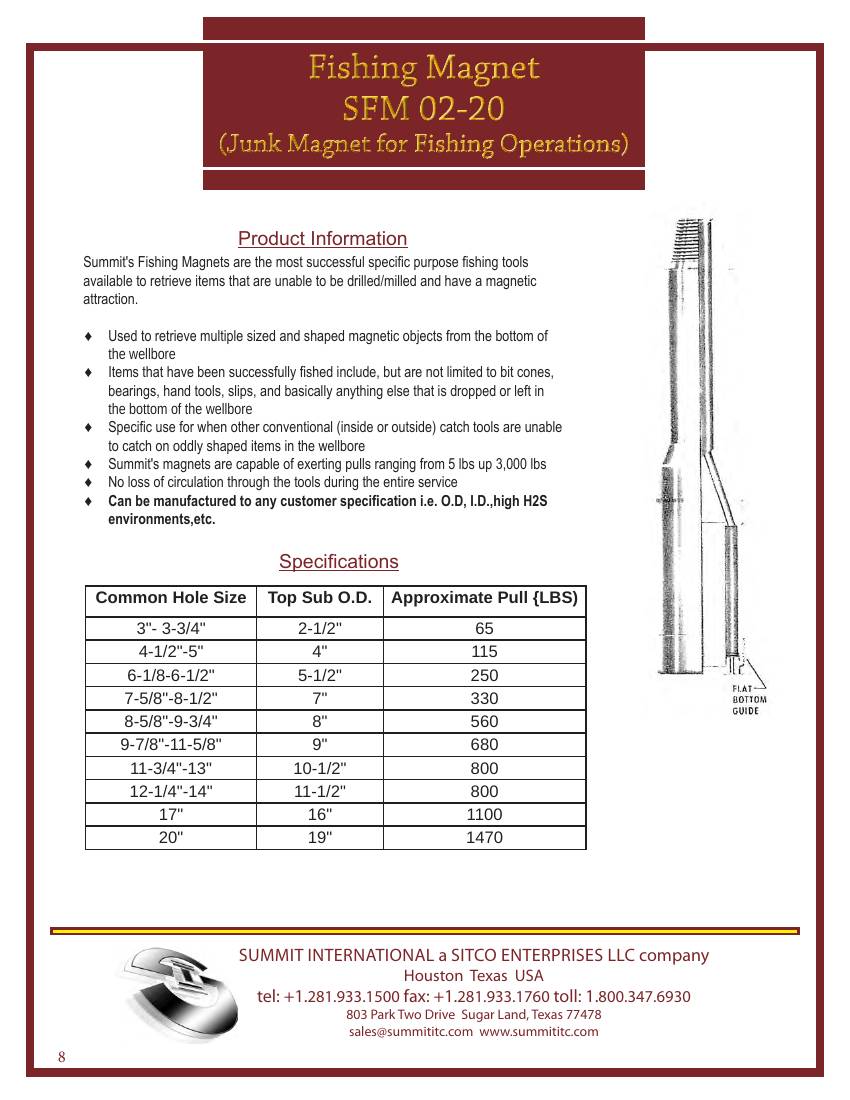

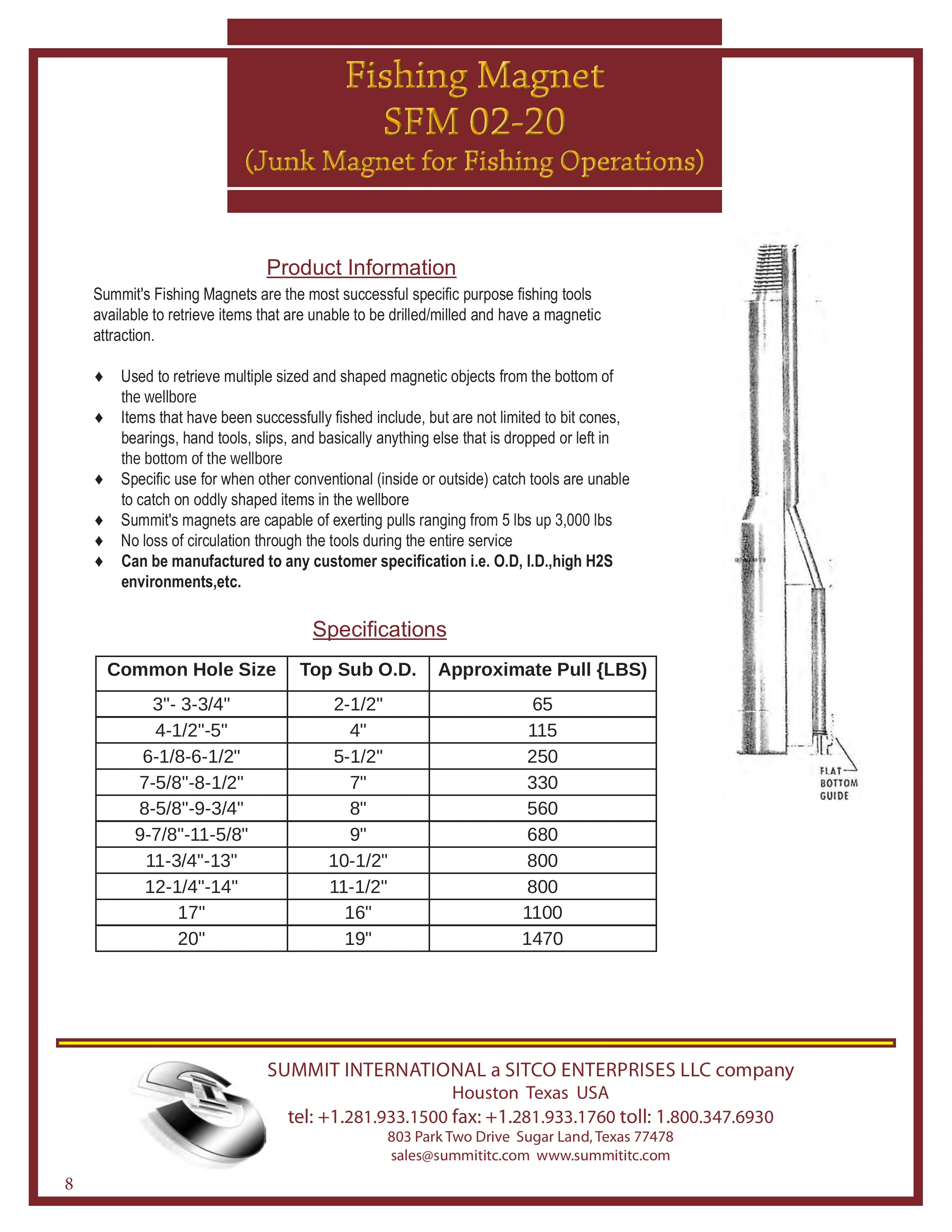

Need the original sheet? View the catalog spec sheet for this product.
