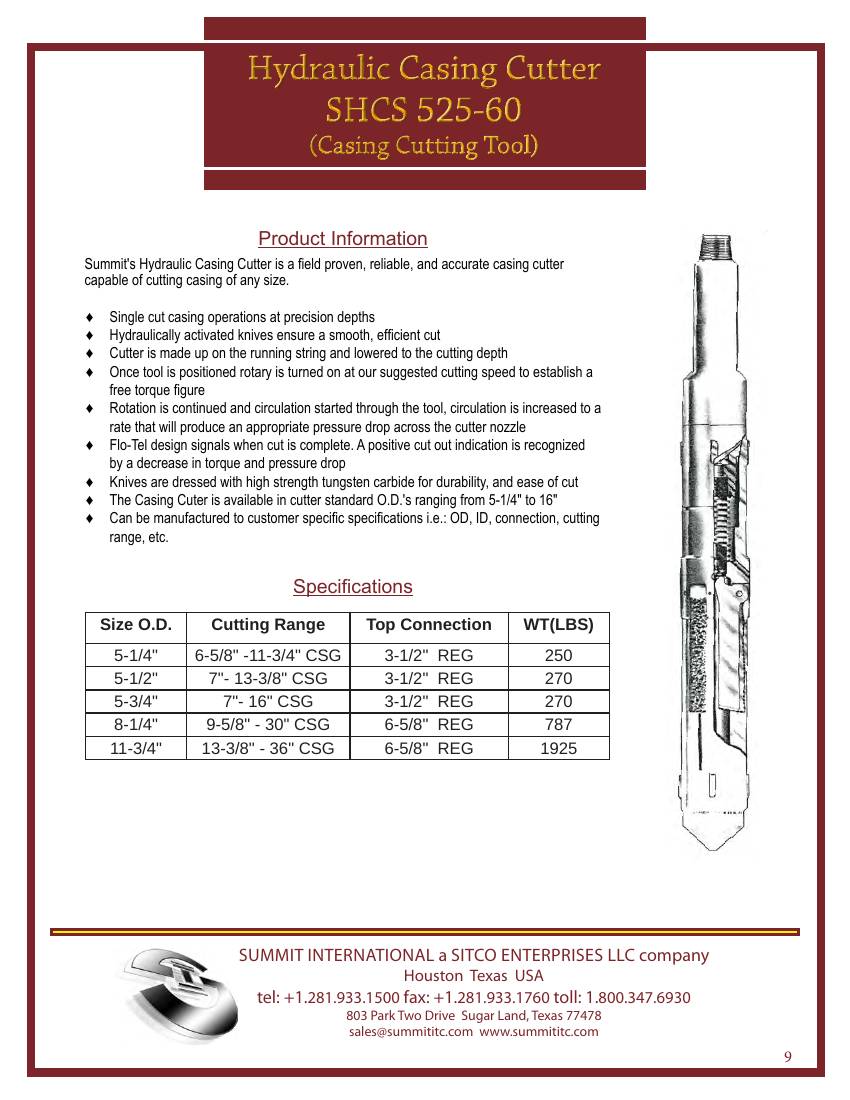

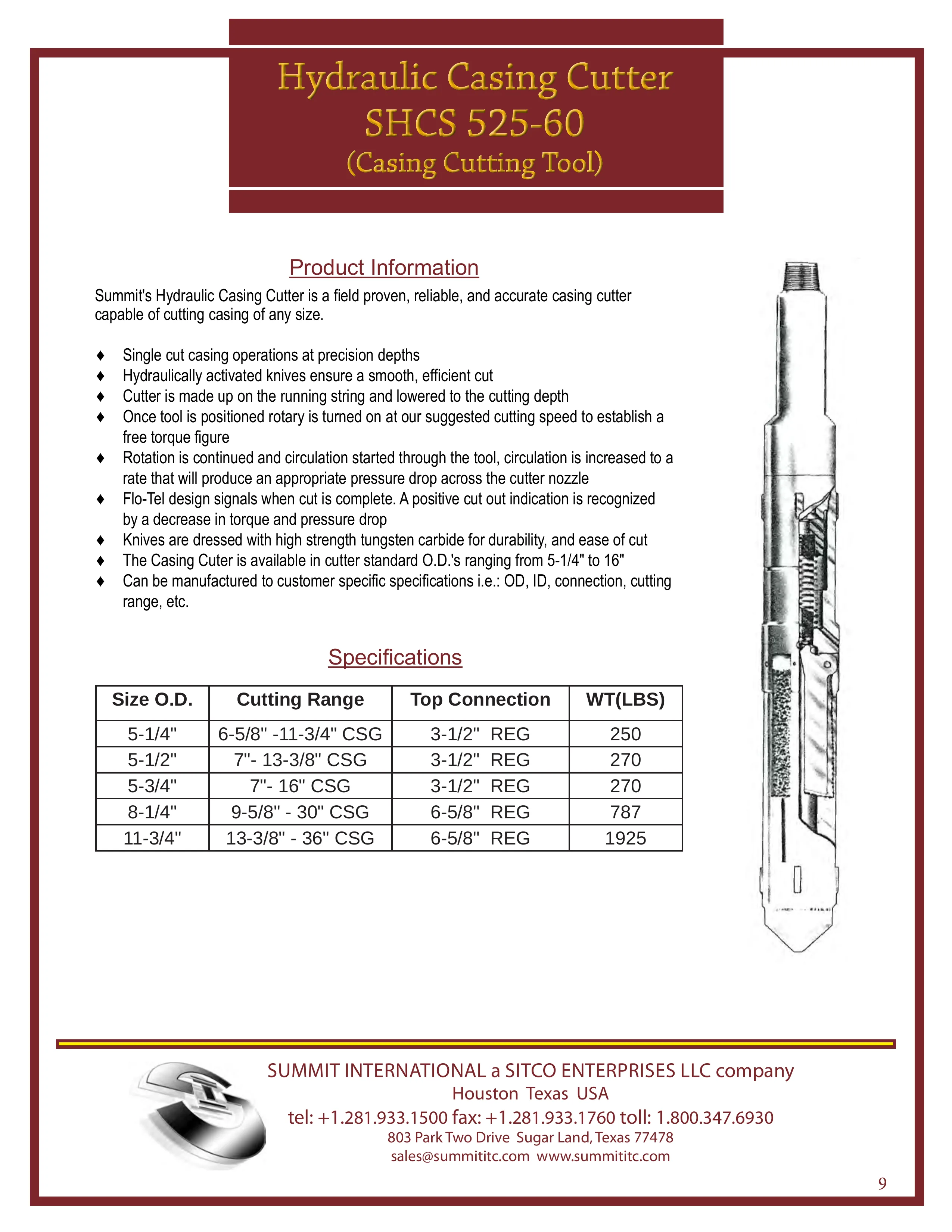

Hydraulic Casing Cutter

Product Information

Summit's Hydraulic Casing Cutter is a field proven, reliable, and accurate casing cutter capable of cutting casing of any size.

• Single cut casing operations at precision depths
• Hydraulically activated knives ensure a smooth, efficient cut
• Cutter is made up on the running string and lowered to the cutting depth
• Once tool is positioned rotary is turned on at our suggested cutting speed to establish a free torque figure
• Rotation is continued and circulation started through the tool, circulation is increased to a rate that will produce an appropriate pressure drop across the cutter nozzle
• Flo-Tel design signals when cut is complete. A positive cut out indication is recognized by a decrease in torque and pressure drop
• Knives are dressed with high strength tungsten carbide for durability, and ease of cut
• The Casing Cutter is available in cutter standard O.D.’s ranging from 5-1/4" to 16"
• Can be manufactured to customer specific specifications i.e.: OD, ID, connection, cutting range, etc.

Specifications
