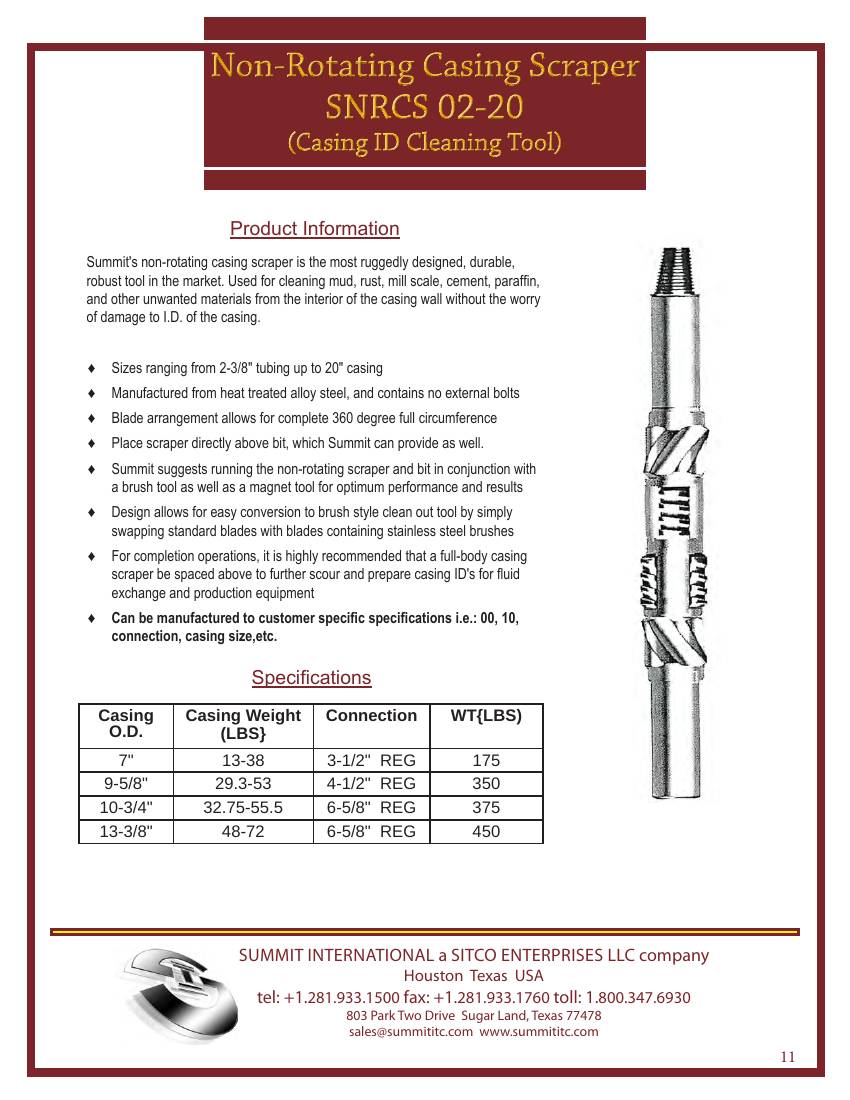

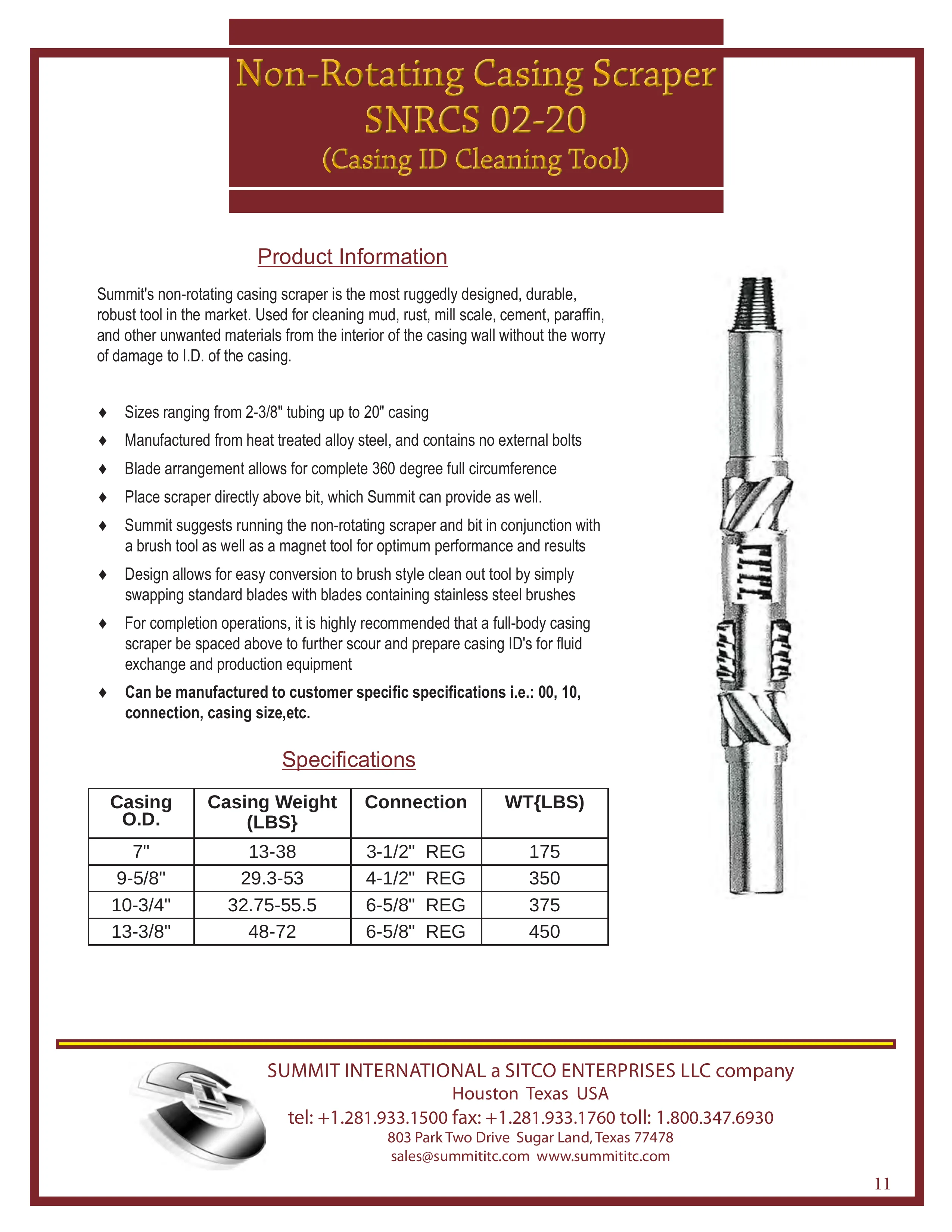

Non-Rotating Casing Scraper

Product Information

Summit's non-rotating casing scraper is the most ruggedly designed, durable, robust tool in the market. Used for cleaning mud, rust, mill scale, cement, paraffin, and other unwanted materials from the interior of the casing wall without the worry of damage to I.D. of the casing.

• Sizes ranging from 2-3/8" tubing up to 20" casing
• Manufactured from heat treated alloy steel, and contains no external bolts
• Blade arrangement allows for complete 360 degree full circumference
• Place scraper directly above bit, which Summit can provide as well.
• Summit suggests running the non-rotating scraper and bit in conjunction with a brush tool as well as a magnet tool for optimum performance and results
• Design allows for easy conversion to brush style clean out tool by simply swapping standard blades with blades containing stainless steel brushes
• For completion operations, it is highly recommended that a full-body casing scraper be spaced above to further scour and prepare casing ID’s for fluid exchange and production equipment
• Can be manufactured to customer specific specifications i.e.: OD, ID, connection, casing size, etc.

Specifications
