Summit Specialty Oil Tools
Packer Type A Casing Patch
SPTCP 575-1125-A — Casing/Tubing Patch
Product Information
Summit's Packer Type A Casing Patch permits fast economical casing/tubing repairs without reducing casing/tubing I.D.
- Used to repair casing/tubing strings in which the I.D. has been damaged/compromised
- Design allows for ease of use and provides timely, and permanent repair
- Post squeeze of the packer, the casing is suspended in the well to keep it under tension
- Manufactured for high H2S environments
- Ability to seal both internal and external pressure
Specifications
| Casing O.D. | Patch O.D. | Standard Pressure Rating (PSI) |
|---|---|---|
| 13-3/8" | 15-1/8" | 10,000 |
Spare Parts
- Spare Grapple
- Spare Seal Kit Including Top Seal & Packer Seal

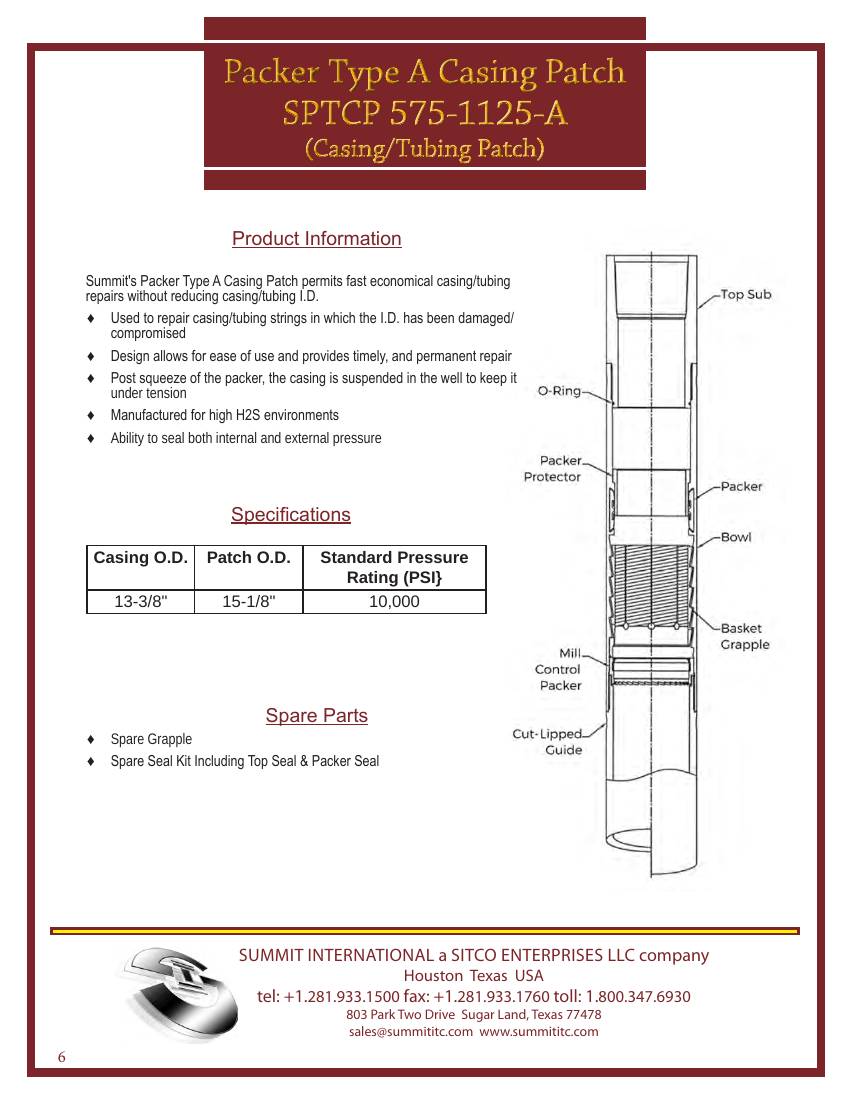

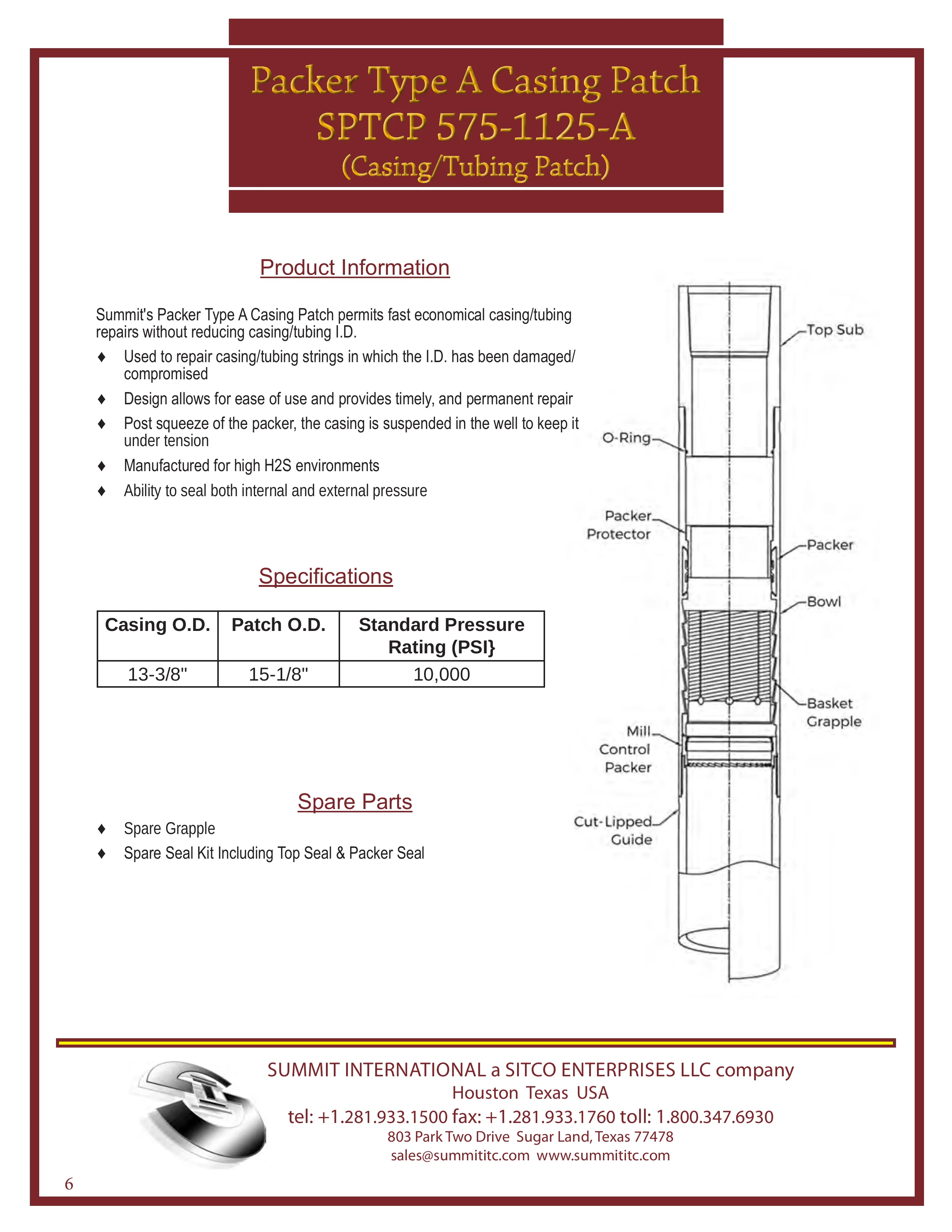

Need the original sheet? View the catalog spec sheet for this product.
