Summit Specialty Oil Tools
Packer Type Casing Patch
SPTCP 575-1125 — Casing/Tubing Patch
Product Information
Summit's Packer Type Casing Patch permits fast economical casing/tubing repairs without reducing casing/tubing I.D.
- Used to repair casing/tubing strings in which the I.D. has been damaged/compromised
- Design allows for ease of use and provides timely, and permanent repair
- Post squeeze of the packer, the casing is suspended in the well to keep it under tension
- Ability to seal both internal and external pressure
- Can be manufactured to any customer specification i.e. O.D, I.D., connection, high H2S environments, etc.
- Available in pressure ranges from 5K to 15K for high pressure applications
Specifications
| Casing O.D. | Patch O.D. | Standard Pressure Rating (PSI) |
|---|---|---|
| 4-1/2" | 5-3/4" | 7,000 |
| 5" | 6-1/4" | 7,000 |
| 5-1/2" | 6-13/16" | 7,000 |
| 7" | 8-3/8" | 7,000 |
| 7-5/8" | 9" | 7,000 |
| 9-5/8" | 11-1/4" | 7,000 |
| 9-7/8" | 11-9/16" | 7,000 |

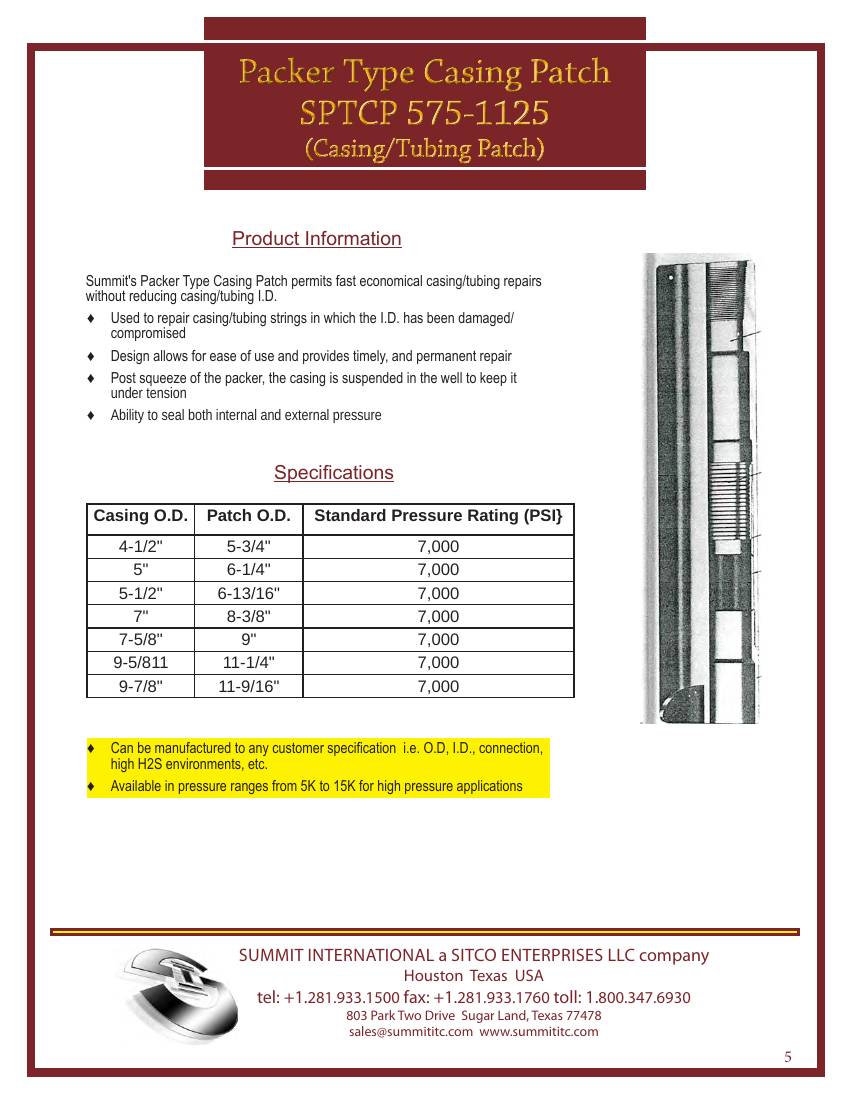

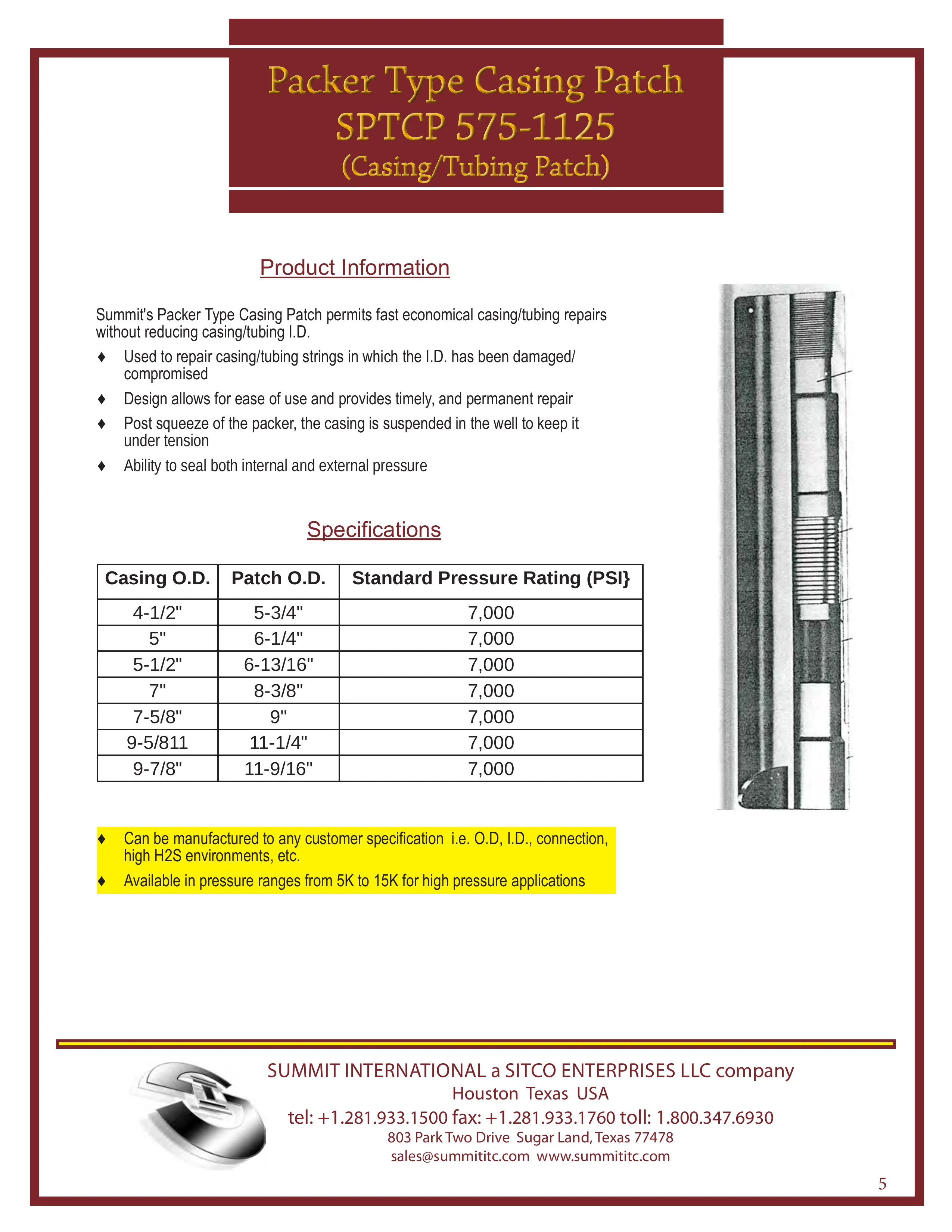

Need the original sheet? View the catalog spec sheet for this product.
